Installation method of stainless steel water ripple

2026-01-26

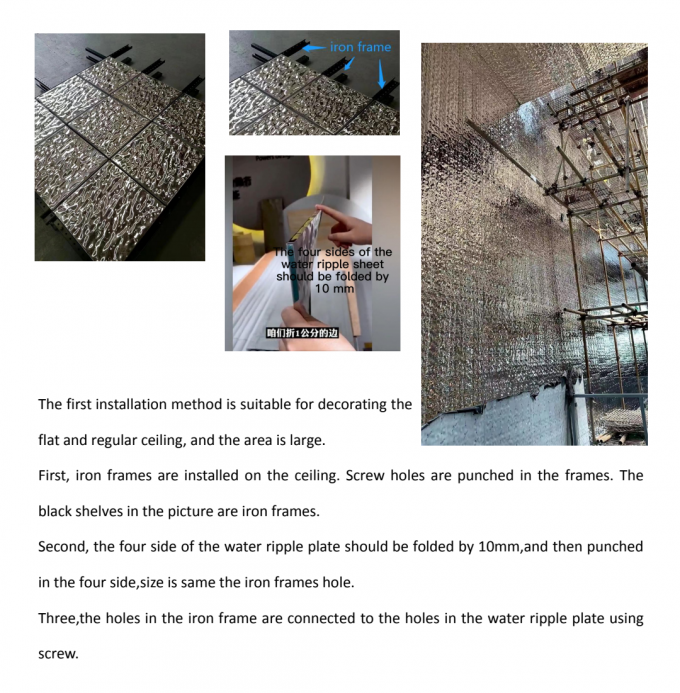

The first installation method is suitable for decorating the flat and regular ceiling,and the area is large .
First, iron frames are installed on the ceiling. Screw holes are punched in the frames. The Black shelves in the picture are iron frames.
Second, the four side of the water ripple plate should be folded by 10MM,and then punched in the four side,size is same the iron frames hole.
Three,the holes in the iron frame are connected to the holes in the water ripple plate using screw.

latest company news about Installation method of stainless steel water ripple 0

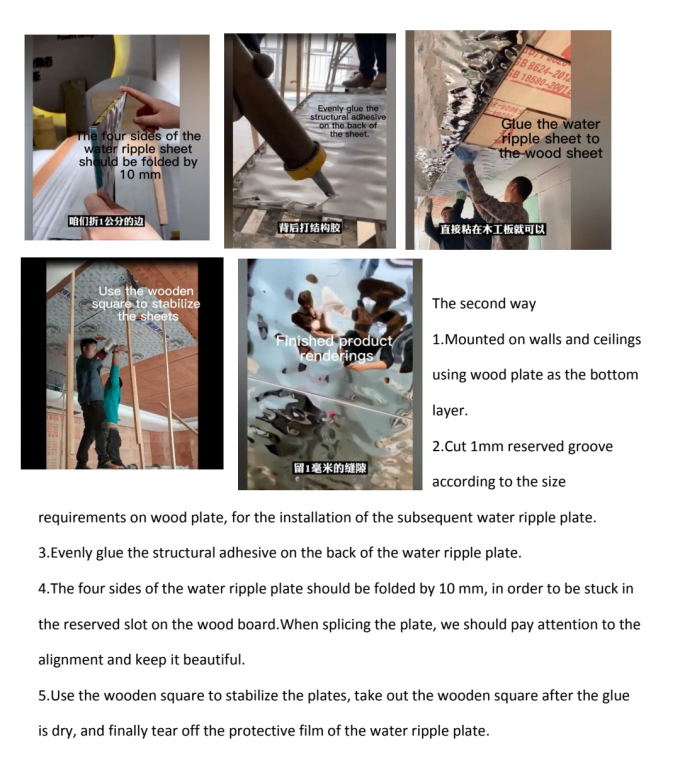

The second way
1.Mounted on walls and ceilings using wood plate as the bottom layer.
2.Cut 1mm reserved groove according to the size requirements on wood plate, for the installation of the subsequent water ripple plate.
3.Evenly glue the structural adhesive on the back of the water ripple plate.
4.The four sides of the water ripple plate should be folded by 10mm,in order to be stuck in the reserved slot on the wood board. When splicing the plate,we should pay attention to the aligment and keep it beautiful.
5.Use the wooden square to stabilize the plates,take out the wooden square after the glue is dry, and finally tear off the protective film of the water ripple plate.

latest company news about Installation method of stainless steel water ripple 1
